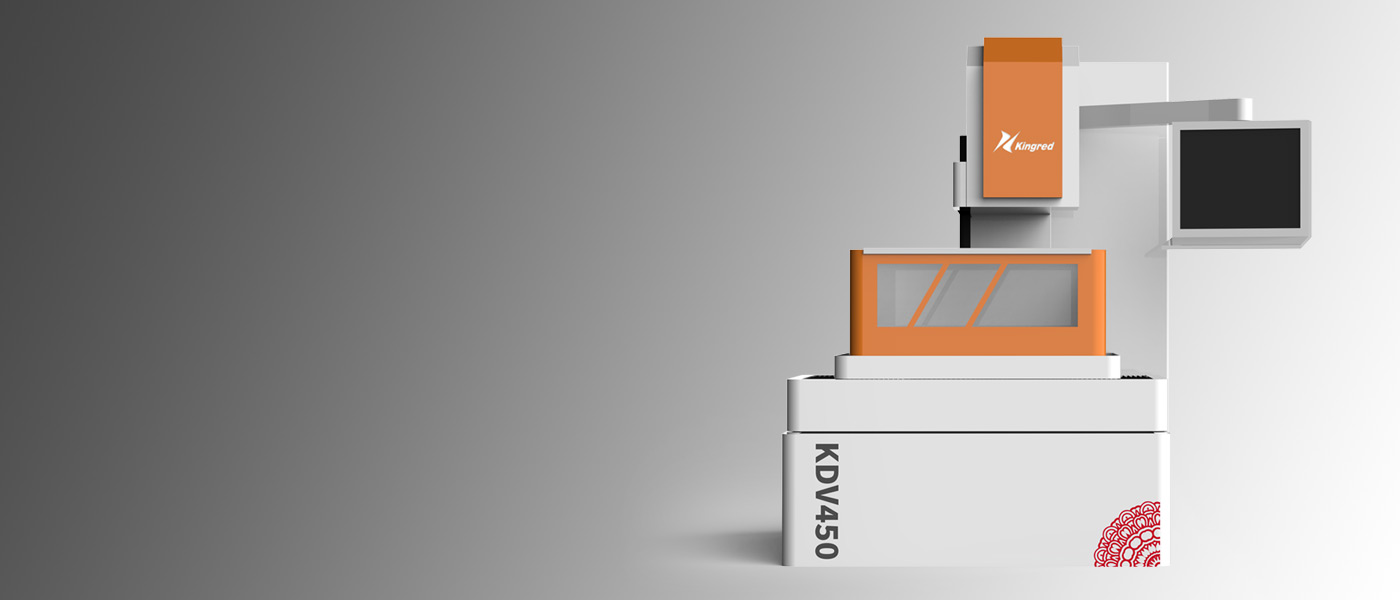

Kingred CNC Wire Cut EDM KDV450

1、Value Satisfaction   Extraordinary Configuration

As Kingred entry model, KDV has some extraordinary configurations for servo motor drive and position encoder, PLC digital control processing, and upper computer network transmission far beyond other industries.

Super cost-effective Wire CUT

• Servo motor drive.

• PLC digital control processing.

• Upper computer network transmission.

• Absolute position encoder.

• Manual Pulse Generator Control.

2、Servo Motor Drive

X/Y-axes of ZL series used Kingred depth customization R&D Servo Motor that could realize high precision positioning to resolve the shortcomings of stepping motor, which dramatically increased machine accuracy. Furthermore, its speed is fast. Kingred matches good development needs through self-development.

Servo Motor Drive

• Apply DSP+FPGA algorithm.

• Better suited to WEDM machining features.

• High precision, avoid risks.

• High-speed response, High precision.

• Moment of force more stable than stepped motor.

3、Absolute Encoder Positioning

Absolute Encoder could directly transmit information to the machine and could provide super precision position to machining. It needn't come back and ensure information in time due to directly transmitting position.

Absolute Encoder Positioning

• Absolute Encoder Positioning.

• Transmit current absolute position.

• No need to reset.

• Instantaneous response.

4、PLC control super-low fault rate

Machine control system uses PLC control model that has high stability, low fault rate, high expansibility, and accommodates industry environment. PLC fits special machining by depth R&D.

PLC control super-low fault rate

• PLC independent Central Processing Unit data instruction response more timely.

• PLC super-strong stability, adapt complex manufacturing environment.

• Super-strong expansibility, realize future upgrade or flexible customization.

• Upper computer network transmission,more stable signal.

5、Ethernet communication transmissione

Upper computer data transmission uses industrial gigabit network transmission, lower delay, and faster response speed.

Ethernet communication transmission

• Upper computer ethernet communication transmission.

• Speed faster.

• Upper computer network transmission.

• Data capacity bigger.

• Instantaneous response.

1、Casting

Based on H250 international standard casting, Kingred developed metal ratio to improve casting rigidity and extensibility. All casting passed two times tempering and 3-6 months of natural aging treatment to release inner stress and decrease deformation.

Two times tempering natural aging casting

• H250 material + Unique rear metal.

• Two times tempering/Natural aging treatment vibration aging.

• Thoroughly remove internal stress.

• High rigidity and stability.

2、Guideway/Ball screw

Taiwan precisive grade screw guideway makes sure machining precision.

4、K-Cut series software intelligent manufacturing

Kingred built ecologically intelligent manufacturing chain, integrating three software K-Cut EDM system, ''K-Cut Wire'' management system, K-Cut PLC system to create a future.

Software ecological system

• Kingred built ecological intelligent manufacturing chain, integrating three software K-Cut EDM  system, ''K-Cut Wire'' management system, K-Cut PLC system.

5、K-Cut EDM system

K-Cut EDM is Kingred independently produced Wire Cut machining system. Graphical drives program, easy to operate. AR Measurement of Slant Edge, Finding the center of a circle, Compensation of Screw Pitch and other practical functions could improve operation. Inside intelligent auxiliary calculation is convenient to calculate kinds of machine deformation.

K-Cut EDM system

• Self-production copyright, continuous upgrade.

• Simple operation to decrease technician training cost.

• Kinds of inside practical functions,ntelligent auxiliary calculation,ERP interfaces and remote management  integration.

• Multi-axis simultaneous machining to achieve complex workpiece manufacturing for taper, variable cone, upper and lower special-shaped.

6、K-cut WIRE  system

K-cut WIRE system is an important part of Kingred K-Cut software ecology, which is responsible for wire feed system management. By combining hardware machine structure, it could realize wire digital management and kinds of feeding wire ways to reach convenience.

K-cut WIRE system

• Wire visual data management.

• Integrated one-key wire feeding, CNC wire tightening, digital reverse control, wire speed dynamic control.

• Wire feed management takes the lead in realizing a new era of digital control and one-key convenient operation.

7、K-cut PLC system

K-cut PLC system is next next-generation intelligent manufacturing expander base, which is Kingred switch to PLC. All series of products applied PLC to replace traditional device. PLC digital processing program has high stability, low fault rate, high compatibility, and scalability, which is a key to keep creation.

K-cut PLC system

• Customized R&D for wire cutting special manufacturing.

• Flexible manufacturing customization.

• Prepare for next-generation manufacturing interface.

• Intelligent manufacturing control entrance.

1、Whole process manufacturing chain

Kingred builds complete manufacturing chain, have perfect manufacturing chain for machining(rough finish, finishing, superfinishing),precise assembly, electric engineering, machine debugging,and process engineering, and realizes to independently finish from part to complete machine. Quality is run through each manufacturing process, builds three system of quality trace for people, product,process, and ensure the stability and consistency of product.

Whole process manufacturing chain

• Machining

• Precise assembly

• Electric engineering

• Process engineering

2、Advanced manufacturing equipment

Kingred continually completes and innovates the infrastructure of manufacturing equipment, ensures that hardware is high precision, successively introduces an advanced industry machine for Mitsubishi 5-axis machining center, SNK machining center, DMG machining center, OKAMOTO grinding machine.Industry lead manufacturing hardware equipment is basic guarantee that Kindred's machine has high precision and best surface finish manufacturing.

Advanced manufacturing equipment

• Mitsubishi 5-axis machining center

• SNK machining center

• OKAMOTO grinding machine

• DMG machining center

3、Precise measuring equipment

Kingred have double inspection for manufacturing process and outcome, high precision measuring equipment for API laser inferterometer, Switzerland TEST three-coordinate detector, Germany Planolith marble square, Japan Sanfeng roughness tester,etc realizes from part precision to machine dynamic precision, positional precision and precise test of manufacturing outcome.

Advanced manufacturing equipment

• Laser interferometer

• Toughness tester

• Double zero-grade marble ruler

• Three-coordinate tester

4、Ingenuity manufacturing process

Kingred with 17-year manufacturing experience have some experienced manufacturing engineers that working age over 5 years. Keep on connecting traditional craft and modern precise equipment manufacturing, the key high-precision parts adhere to the manual scraping process to ensure that the machine has a stable step distance machining precision for many years.At the same time, the human-centered quality traceability system creates an ingenious manufacturing process.

Ingenuity manufacturing process

• 17-year manufacturing experience

• Traditional technology  application

• Quality traceability system
