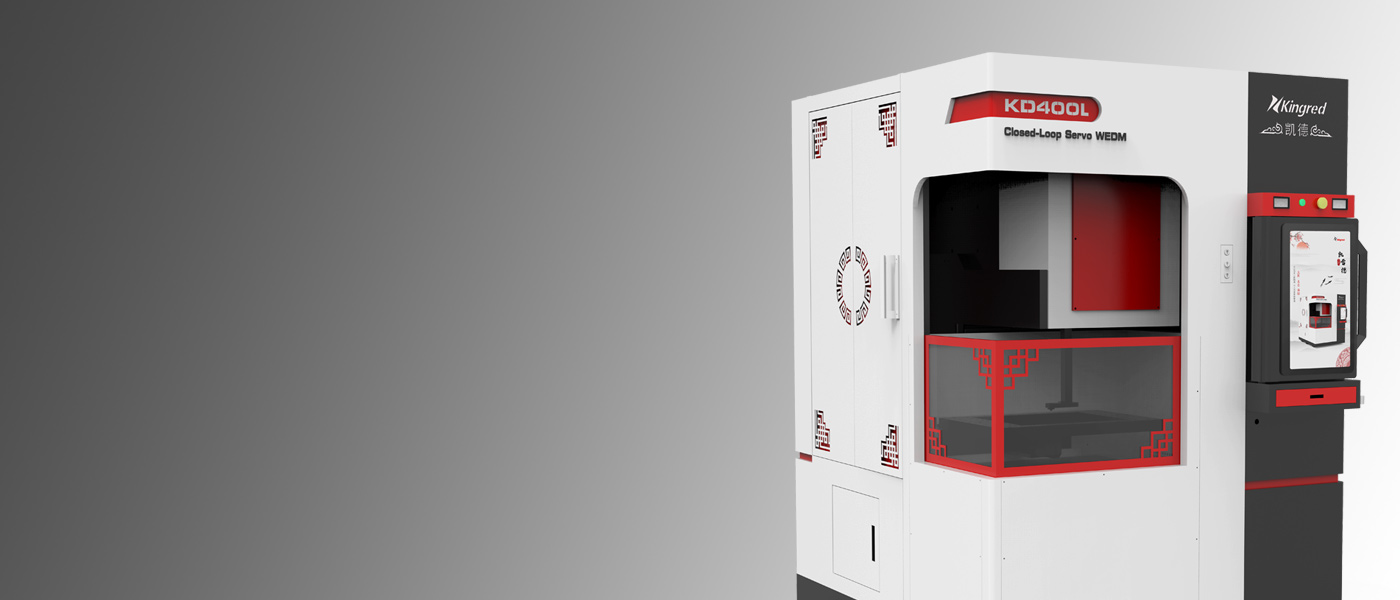

Linear Motor Drive Wire Cut EDM KD400L

1、Linear Motor Drive

Linear Motor is a magnetic levitation. We are realizing high responsiveness and resolving reverse gap, fraying, quadrant bulge, and other questions to ensure accuracy. Kingred X/Y-axes of L series used linear motor drive.

Linear Motor Drive Grating Scale Location

• High-speed response

• No machine touch, high precision

• Avoid traditional screw drawback

• High precisive location

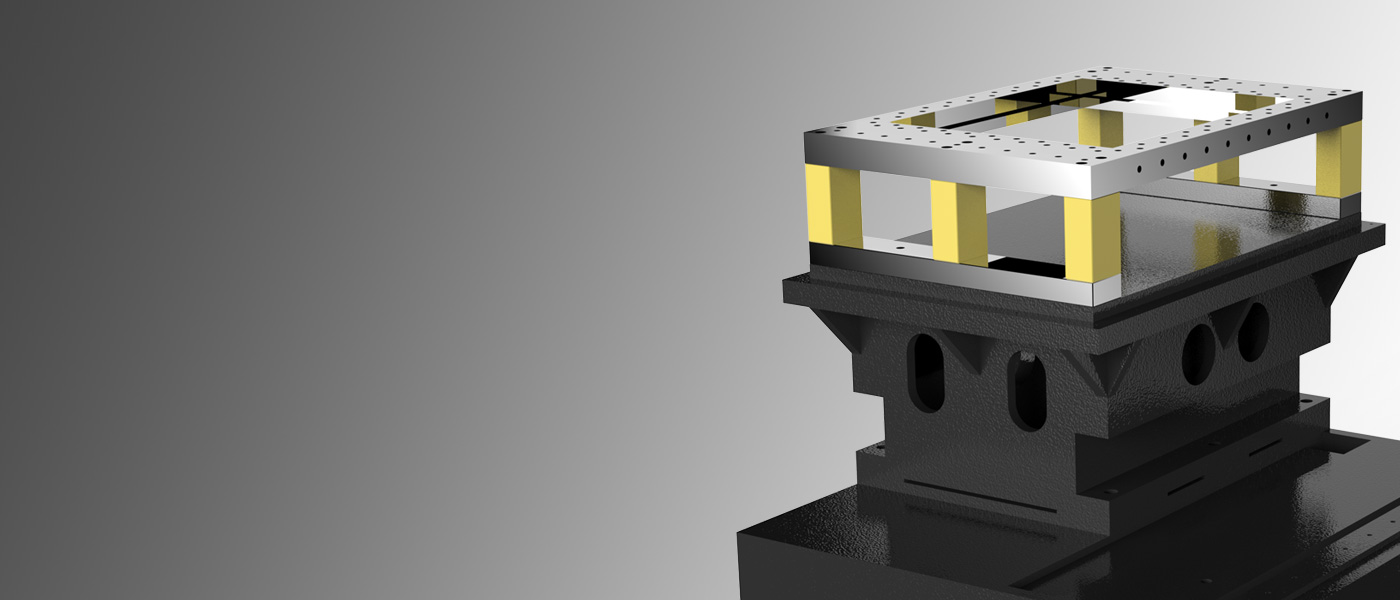

2、Column Moves Design， continuous accuracy

Availability avoids the machine's precisive effect on the table load. Machine working and moving area divide to ensure workpiece machining accuracy and quality. The table is settled, reducing footprint and improving plant utilization.

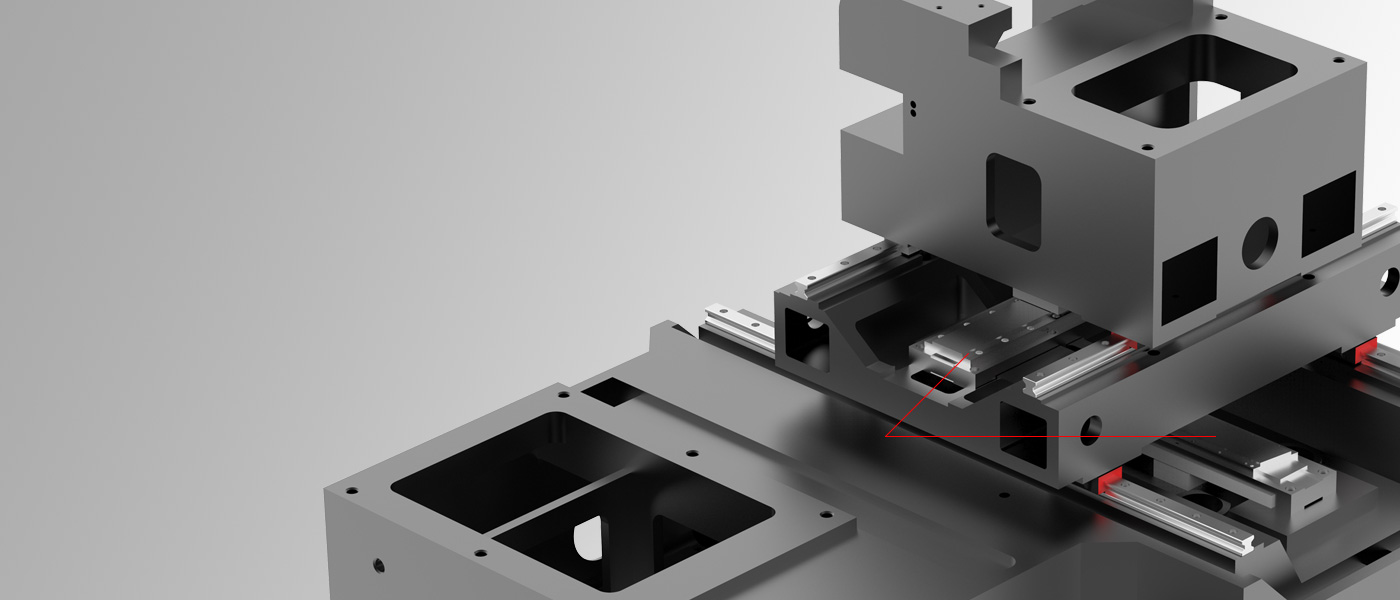

Column moves fixed worktable structure

• The worktable does not participate in the movement without loss, improve he accuracy.

• Divide machining area and moving area  Improve working efficiency

• Fixed worktable, Space-saving

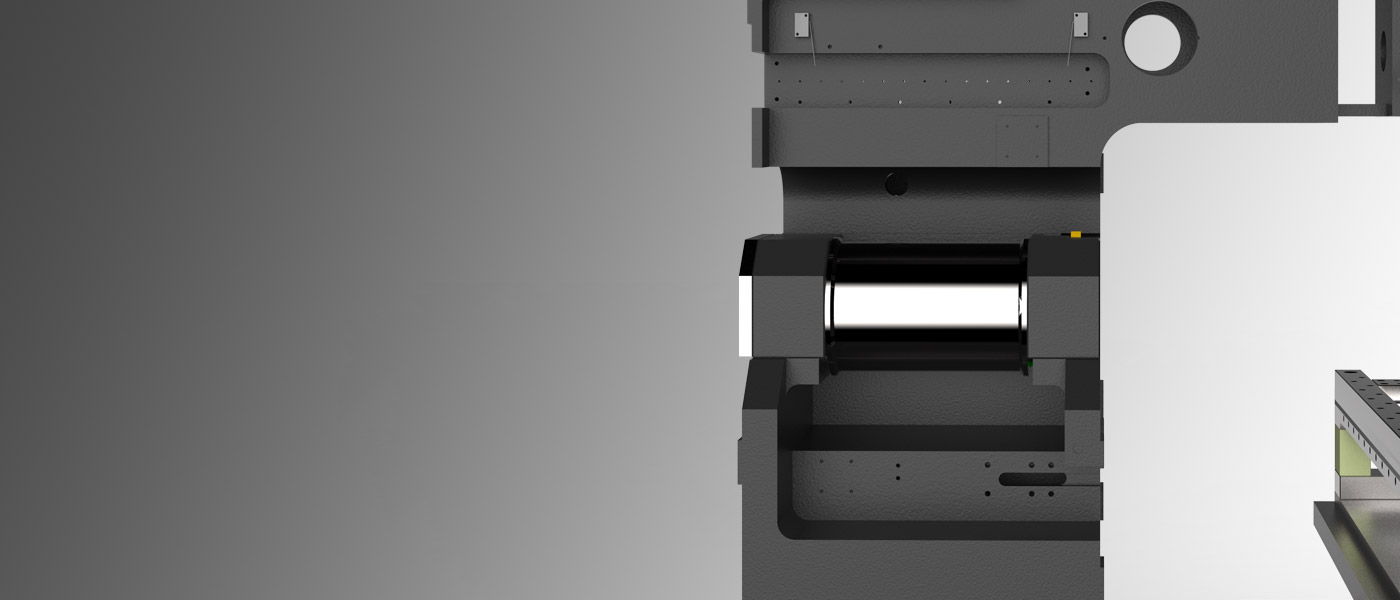

3、Horizontal wire feeder design, less vibration, increase surface finish

Kingred designs horizontal wire feeder, and wire has small travel span,  vibration reduction, and surface finish increase.

Horizontal wire feed design

• Small wire travel span, less wire vibration.

• Unobvious surface stripe.

• Fixed wire feeder to avoid affecting accuracy.

4、Stable taper structure

Kingred creation develops independent taper module, realizing ±12°large taper machining, 120mm the support of full travel of double line rails, and  taper machining precision and surface finish are significantly improved compared with the market small taper structure.

Stable taper structure design

• Independent taper module hardware design

• Z-axis double guideway machining great stability.

• Support Z-axis memory height setting

• Taper up to ±12°

• Independent U/V-axes model

5、One-key CNC tighten wire

Kingred independently creates tighten wire and cooperates Kingred K-Cut Wire system, which reaches wire feed digitization.

One-key CNC tighten wire

• Easy to operate

• No need to use auxiliary tool

• No need to use tighten wheel

6、Automatic direction reverse system

Kingred K-CUT Wire feed system realized automatic reverse and the foundation of intelligence.

Automatic direction reverse system

• Automatic reverse

• No need to press the button

• Customize the reversing position

• Digital control avoids reverse failure

7、Closed eco-friendly design

Avoid debris liquid splash and keep plant neat  with 30% reduction, comparing with traditional machine.

8、Chinese style appearance

Kingred is committed to building Chinese brands and showcasing the charm of Chinese style.

9、21.5-inch big touch screen, touch screen age coming

Position operates more precisive, home screen shows parameters, no need to inside check.

21.5-inch super display screen

• Clear screen

• Obviously main parameter

• Dual input methods

1、Casting

Based on H250 international standard casting, Kingred developed metal ratio to improve casting rigidity and extensibility. All casting passed two times tempering and 3-6 months of natural aging treatment to release inner stress and decrease deformation.

Two times tempering natural aging casting

• H250 material + Unique rear metal.

• Two times tempering/Natural aging treatment vibration aging.

• Thoroughly remove internal stress.

• High rigidity and stability.

2、Guideway

Sliver 1.5µm SP grade linear guideway realized high precisive position and repeated position to ensure machine height machining stability and precision, load rigidity.

SP grade guideway

• 1.5µm super precision.

• Super stability and precision machining.

• High-load rigidity.

• Ultra-precision guideway.

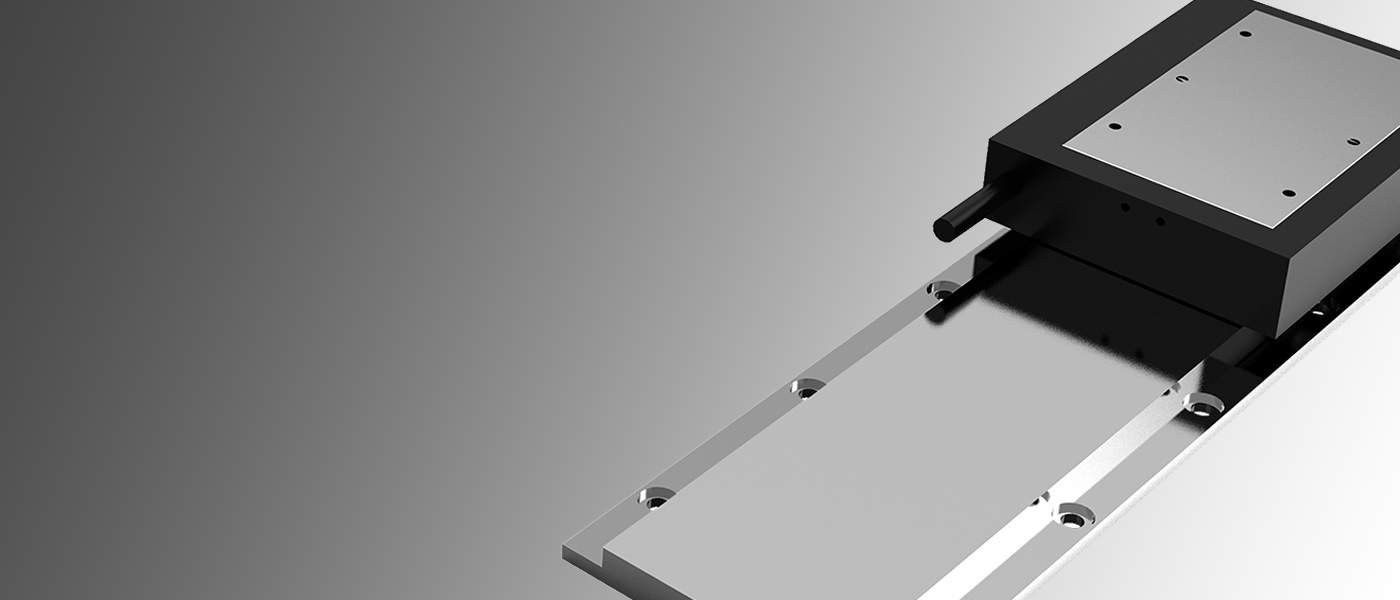

3、Linear Motor

Kingred EDM fully utilized performance by repeatedly adjustment as an international first-line brand.

Linear Motor

• High-speed response.

• Kingred EDM fully utilized performance by repeatedly  adjustment as an international first-line brand.

• Linear motor realizes full closed-loop control.

4、K-Cut series software intelligent manufacturing

Kingred built ecologically intelligent manufacturing chain, integrating three software K-Cut EDM system, ''K-Cut Wire'' management system, K-Cut PLC system to create a future.

Software ecological system

• Kingred built ecological intelligent manufacturing chain, integrating three software K-Cut EDM  system, ''K-Cut Wire'' management system, K-Cut PLC system.

5、K-Cut EDM system

K-Cut EDM is Kingred independently produced Wire Cut machining system. Graphical drives program, easy to operate. AR Measurement of Slant Edge, Finding the center of a circle, Compensation of Screw Pitch and other practical functions could improve operation. Inside intelligent auxiliary calculation is convenient to calculate kinds of machine deformation.

K-Cut EDM system

• Self-production copyright, continuous upgrade.

• Simple operation to decrease technician training cost.

• Kinds of inside practical functions,ntelligent auxiliary calculation,ERP interfaces and remote management  integration.

• Multi-axis simultaneous machining to achieve complex workpiece manufacturing for taper, variable cone, upper and lower special-shaped.

6、K-cut WIRE  system

K-cut WIRE system is an important part of Kingred K-Cut software ecology, which is responsible for wire feed system management. By combining hardware machine structure, it could realize wire digital management and kinds of feeding wire ways to reach convenience.

K-cut WIRE system

• Wire visual data management.

• Integrated one-key wire feeding, CNC wire tightening, digital reverse control, wire speed dynamic control.

• Wire feed management takes the lead in realizing a new era of digital control and one-key convenient operation.

7、K-cut PLC system

K-cut PLC system is next next-generation intelligent manufacturing expander base, which is Kingred switch to PLC. All series of products applied PLC to replace traditional device. PLC digital processing program has high stability, low fault rate, high compatibility, and scalability, which is a key to keep creation.

K-cut PLC system

• Customized R&D for wire cutting special manufacturing.

• Flexible manufacturing customization.

• Prepare for next-generation manufacturing interface.

• Intelligent manufacturing control entrance.

1、Whole process manufacturing chain

Kingred builds complete manufacturing chain, have perfect manufacturing chain for machining(rough finish, finishing, superfinishing),precise assembly, electric engineering, machine debugging,and process engineering, and realizes to independently finish from part to complete machine. Quality is run through each manufacturing process, builds three system of quality trace for people, product,process, and ensure the stability and consistency of product.

Whole process manufacturing chain

• Machining

• Precise assembly

• Electric engineering

• Process engineering

2、Advanced manufacturing equipment

Kingred continually completes and innovates the infrastructure of manufacturing equipment, ensures that hardware is high precision, successively introduces an advanced industry machine for Mitsubishi 5-axis machining center, SNK machining center, DMG machining center, OKAMOTO grinding machine.Industry lead manufacturing hardware equipment is basic guarantee that Kindred's machine has high precision and best surface finish manufacturing.

Advanced manufacturing equipment

• Mitsubishi 5-axis machining center

• SNK machining center

• OKAMOTO grinding machine

• DMG machining center

3、Precise measuring equipment

Kingred have double inspection for manufacturing process and outcome, high precision measuring equipment for API laser inferterometer, Switzerland TEST three-coordinate detector, Germany Planolith marble square, Japan Sanfeng roughness tester,etc realizes from part precision to machine dynamic precision, positional precision and precise test of manufacturing outcome.

Advanced manufacturing equipment

• Laser interferometer

• Toughness tester

• Double zero-grade marble ruler

• Three-coordinate tester

4、Ingenuity manufacturing process

Kingred with 17-year manufacturing experience have some experienced manufacturing engineers that working age over 5 years. Keep on connecting traditional craft and modern precise equipment manufacturing, the key high-precision parts adhere to the manual scraping process to ensure that the machine has a stable step distance machining precision for many years.At the same time, the human-centered quality traceability system creates an ingenious manufacturing process.

Ingenuity manufacturing process

• 17-year manufacturing experience

• Traditional technology  application

• Quality traceability system
