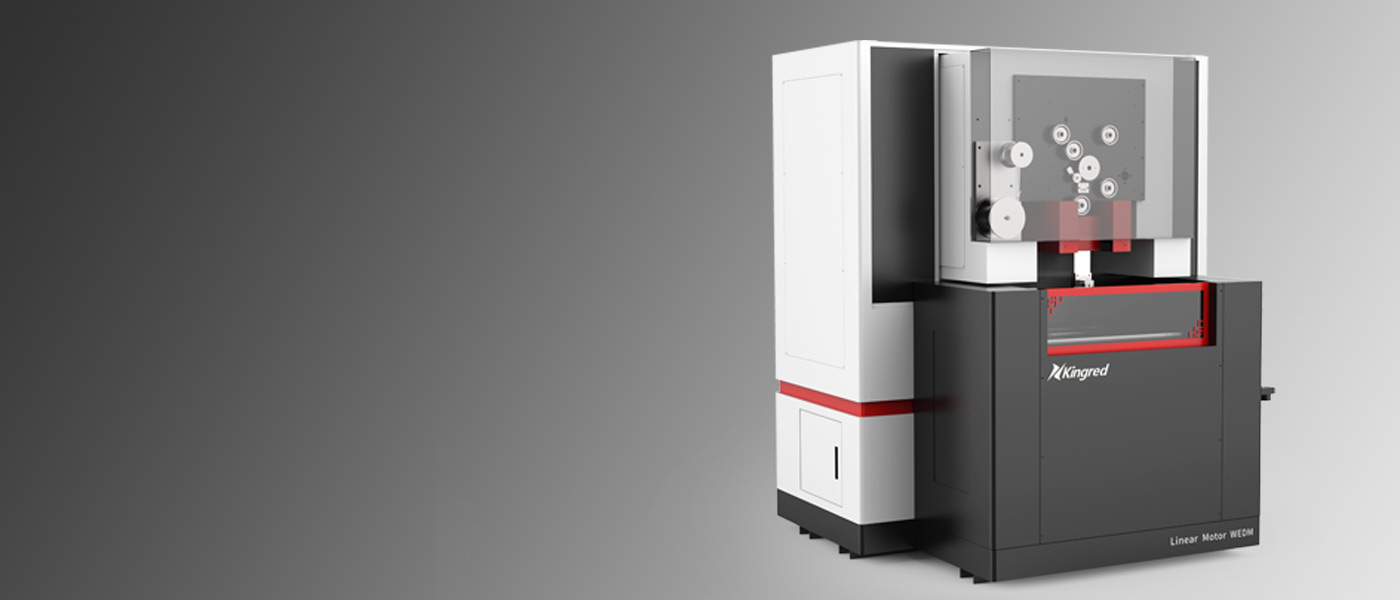

Kingred High Precision Brass Wire EDM Machinery
Linear Motor Drive
Auto Wire Threading
High Precision Machining
Linear Motor Drive EDM KD400L Parameter
| Unit | Parameter | |
| X, Y trave | mm | 360*250 |
| U, V, Z travel | mm | 60*60*200 |
| Maximum workpiece (W*D*H) | mm | 650*450*200 (flushing) |
Maximum workpiece (W*D*H) | mm | 650*450*145 (submerged) |
| Maximum workpiece weight | kg | 450 |
| XY feed rate Max | mm/min | 1800 |
| Motor system | XY - Linear motor | |
| UVZ-AC Servo Motor | ||
| Wire diameter (standard) | φ0.15–0.3 (φ0.25) | |
| Maximum wire feed speed | mm/sec | 300 |
| Wire tension | gf | 300-2500 |
| Maximum cutting taper | mm | ±14.5°/80 (wide nozzle, DA+DB=15 mm) |
| Overall dimensions (W*D*H) | 2.4x2.5x2.2 | |
| Net weight (including power and fluid system) | kg | 2750 |
| Water tank capacity | kg | 930 |
1、Stable center of gravity, pitch accuracy within ±4μm.
2、Windows-based K-CUT system, 10x faster computing performance.
3、Machining speed increased by 13%, energy savings up to 30%.
4、Comes with Kingred custom shortcut keyboard.
5、Threading and cutting efficiency improved by more than15%.
6、Flexible taper cutting capability.
7、Discharge power ensures fine surface finish while maintaining productivity and accuracy, reducing power consumption by 40%.
8、Full closed-loop control.
9、First tier linear grating scale combined with ultra-precision guide rails ensures accuracy.
10、Corner accuracy control.
11、Automatically adjusts speed and machining energy for corner conditions.
12、21.5-inch LCD touchscreen.
-
